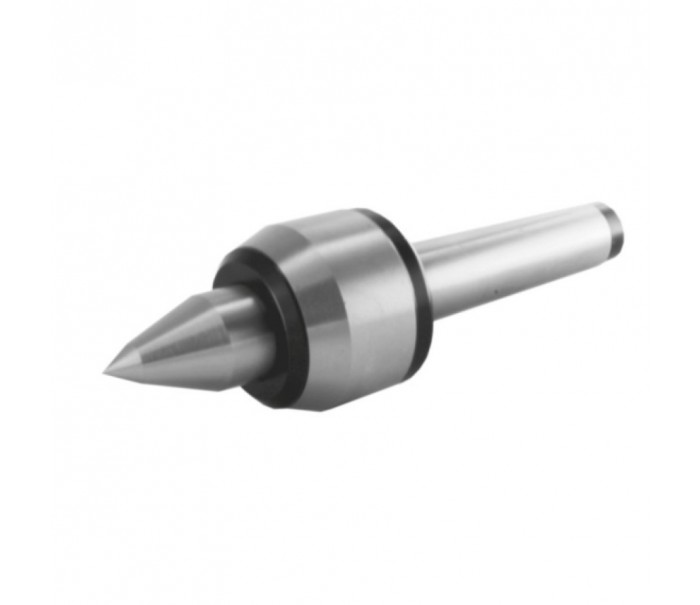

TEMAK MK4 Döner Punta CNC
ÖZELLİKLER
• RULMAN ÖMRÜ 2000 İŞ SAATİDİR.
• PUNTA UCU SERTLİĞİ 60-62 HRC
• SALGI : MAX. 0,008 mm
MK4 Döner Punta CNC

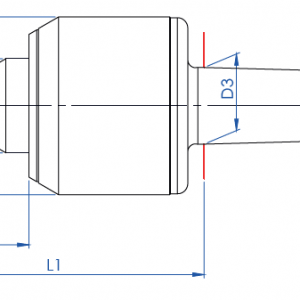

| KOD | KONİK | D1 (mm) |
D2 (mm) |
D3 (mm) |
D4 (mm) |
L1 (mm) |
L2 (mm) |
DEVİR d/d (max) |
PARÇA AĞIRLIĞI KG (max) |
| 144 | MK4 | 68 | 34,5 | 31.267 | 15 | 122 | 48,5 | 5000 | 500 |
| 145 | MK5 | 83 | 44 | 44.399 | 16 | 142 | 61 | 4000 | 800 |
|
||
|---|---|---|
