ÖZELLİKLERİ
• SERTLİK : HRC50
• EŞ MERKEZLİLİK : 0.005mm
• DAİRESELLİK : 0.005mm
• MALZEME : ÇELİK

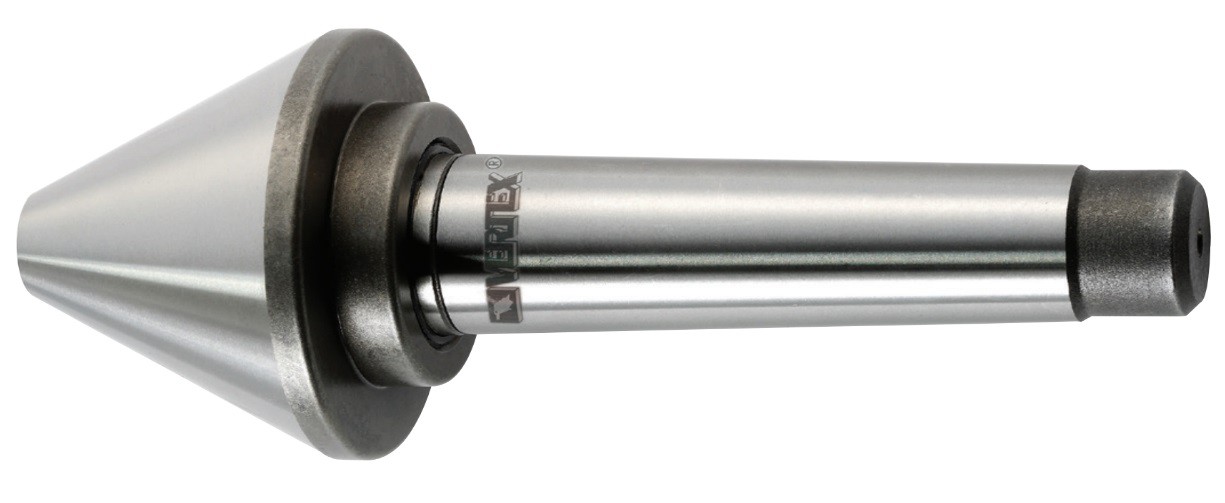

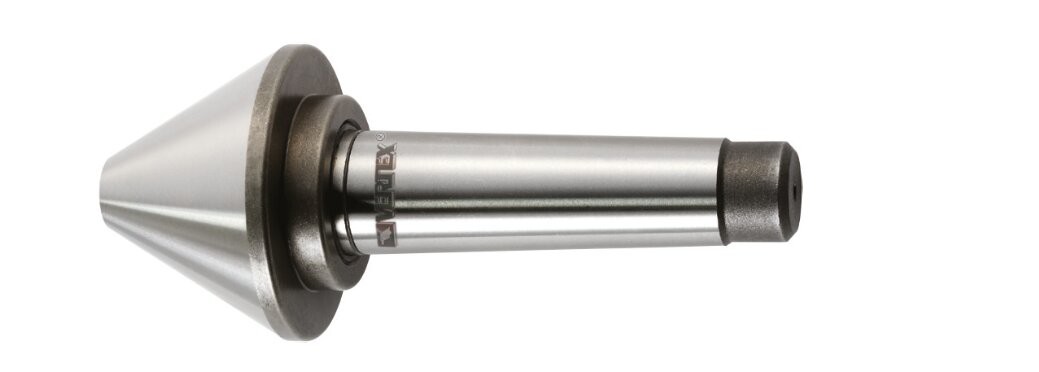

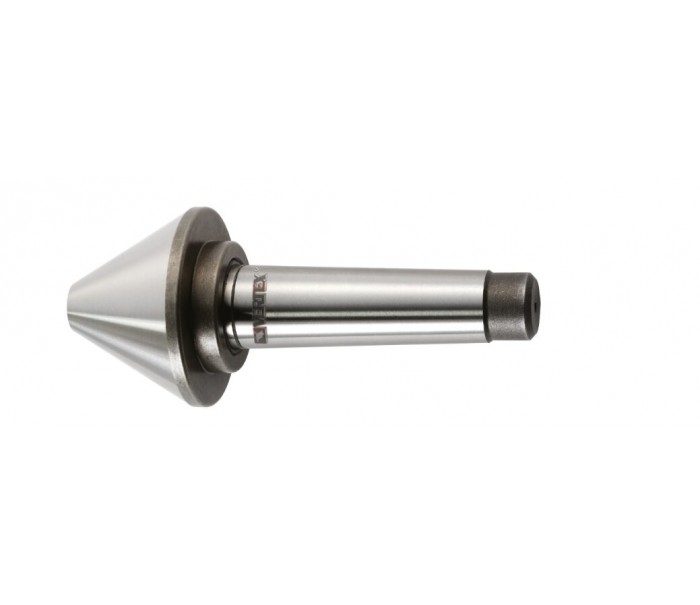

VERTEX Boru Puntası MK3x4

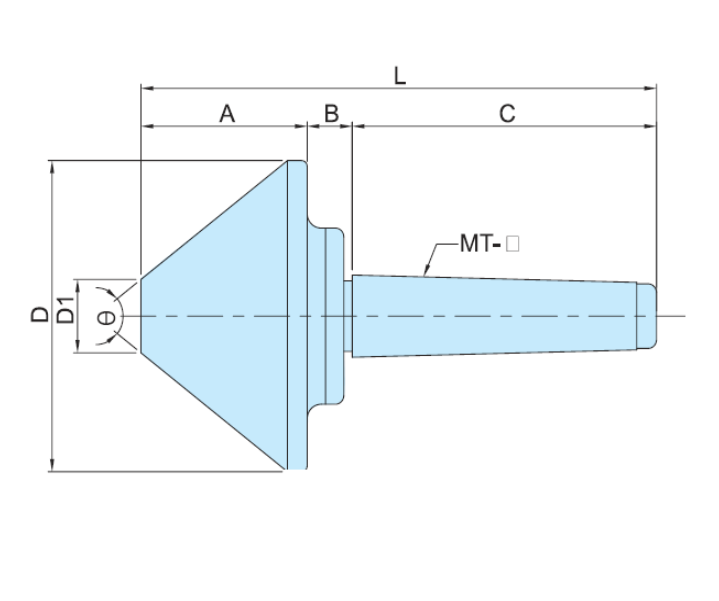

| ÜRÜN KODU | ÖLÇÜ | A | B | C | D | D1 | L | MAX.HIZ | 100 RPMDE YÜK KAPA.(KG) | AĞIRLIK (KG) |
| VLC-433 | MK3X3 | 52 | 18 | 86 | 78 | 15 | 156 | 3300 | 400 | 1.6 |
| VLC-434 | MK3X4 | 59 | 16 | 86 | 106 | 25 | 161 | 3000 | 400 | 2.8 |
| VLC-443 | MK4X3 | 52 | 18 | 108 | 78 | 15 | 178 | 3300 | 400 | 1.8 |
| VLC-444 | MK4X4 | 59 | 16 | 108 | 106 | 25 | 183 | 3000 | 500 | 3.1 |
| VLC-445 | MK4X5 | 73 | 12 | 108 | 128 | 40 | 193 | 2000 | 650 | 4.9 |
| VLC-446 | MK4X6 | 88 | 12 | 108 | 156 | 45 | 208 | 1900 | 800 | 7.7 |
| VLC-448 | MK4X8 | 98 | 12 | 108 | 206 | 81 | 218 | 1500 | 1300 | 15.4 |
| VLC-455 | MK5X5 | 73 | 12 | 136 | 128 | 40 | 221 | 2000 | 650 | 5.8 |
| VLC-456 | MK5X6 | 88 | 12 | 136 | 156 | 45 | 236 | 1900 | 800 | 8.6 |
| VLC-458 | MK5X8 | 98 | 12 | 136 | 206 | 81 | 246 | 1500 | 1600 | 15.7 |
| VLC-568 | MK6X8 | 103 | 13 | 185 | 206 | 54 | 298 | 1800 | 3000 | 15.8 |
|
||
|---|---|---|
