ÖZELLİKLER
• 3 AYAKLI MERKEZİ SIKMALI UNİVERSAL TORNA AYNASI
• YÜKSEK KALİTELİ DÖKÜM GÖVDE
• UNİVERSAL TORNA TEZGAHLARINDA FENER MİLİNE FLANŞ İLE BAĞLANIR
• FREZELERDE, DİVİZÖRLERDE VE TABLALARDA KULLANILIR

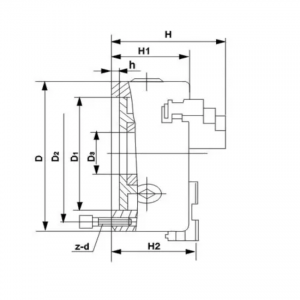

| D | D1 | D2 | D3 | H | H1 | h | z-d | NET-KG |
| 80 | 55 | 66 | 16 | 65,5 | 50 | 4 | 3-M16 | 1,9 |
| 100 | 72 | 84 | 22 | 74,5 | 55 | 3 | 3-M | 3,2 |
| 125 | 95 | 108 | 30 | 84,5 | 58 | 4 | 3-M8 | 5 |
| 160 | 130 | 142 | 45 | 94 | 65 | 5 | 3-M8 | 8,8 |
| 200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 | 15,5 |
| 250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 | 27,5 |
| 315 | 260 | 285 | 100 | 148 | 90 | 6 | 3-M16 | 47 |
| 400 | 340 | 368 | 130 | 174 | 100 | 6 | 3-M16 | 73 |
| 500 | 440 | 465 | 210 | 202 | 115 | 6 | 6-M16 | 121 |
| 630 | 545 | 586 | 252 | 221 | 135 | 7 | 6-M16 | 200 |
|
||
|---|---|---|
