ÖZELLİKLER

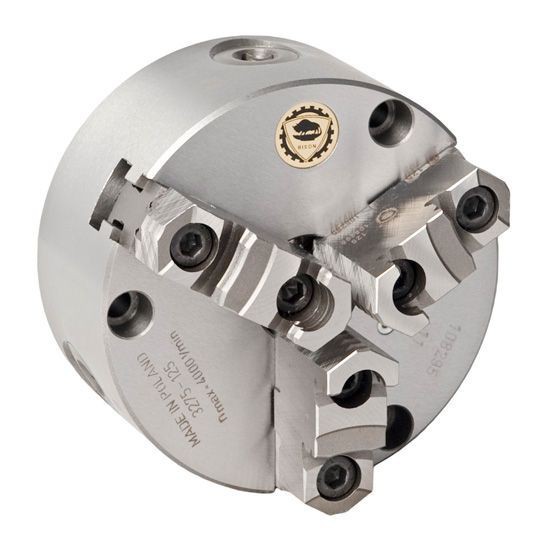

• 3 AYAKLI MERKEZİ SIKMALI UNİVERSAL TORNA AYNASI
• YÜKSEK KALİTELİ DÖKÜM GÖVDE
• UNİVERSAL TORNA TEZGAHLARINDA FENER MİLİNE FLANŞ İLE BAĞLANIR
• FREZELERDE, DİVİZÖRLERDE VE TABLALARDA KULLANILIR

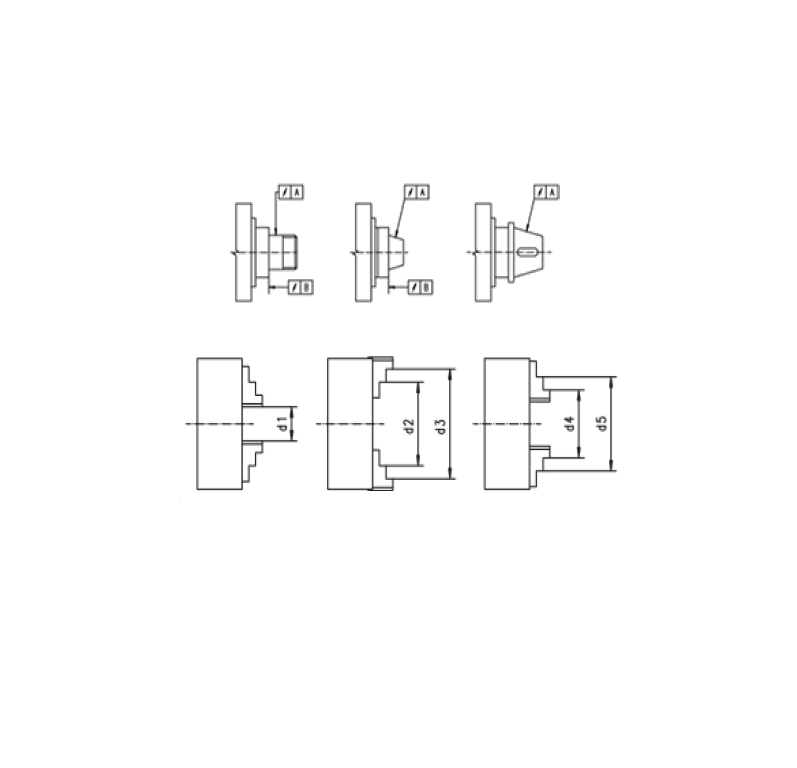

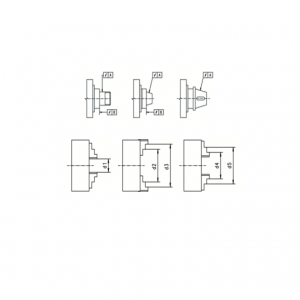

| Ürün Kodu | A | B | B1 | C | D | E | F | G | J | L | Kg |
| 3275-125 | 125 | 56 | 60,8 | 4 | 95 | 32 | 108 | 3xM8 | 20 | 40 | 5 |
| 3275-160 | 160 | 64,5 | 69,3 | 4 | 125 | 42 | 140 | 6xM10 | 30 | 43 | 10 |
| 3275-200 | 200 | 75 | 79,8 | 4 | 160 | 55 | 176 | 6xM10 | 29 | 45 | 17,5 |
| 3275-250 | 250 | 85 | 88,8 | 5 | 200 | 76 | 224 | 6xM12 | 34 | 53 | 29 |
| 3275-315 | 315 | 94 | 99,1 | 5 | 260 | 103 | 286 | 6xM16 | 43 | 57 | 50 |
| 3275-400 | 400 | 105 | 113,8 | 5 | 330 | 136 | 362 | 6xM16 | 55 | 67 | 85 |
|
||
|---|---|---|
