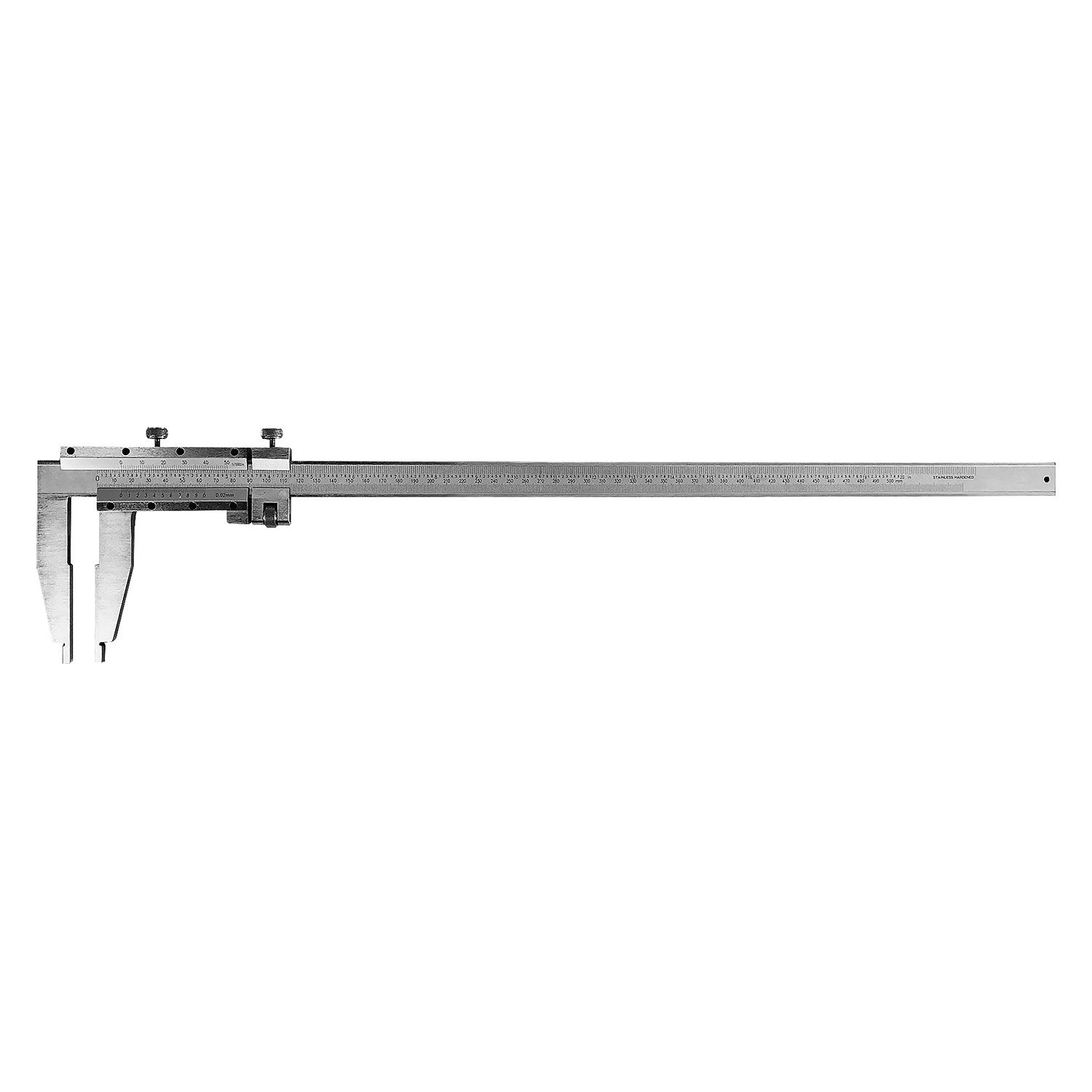

ERT 800x150mm Tek Çene Mekanik Kumpas

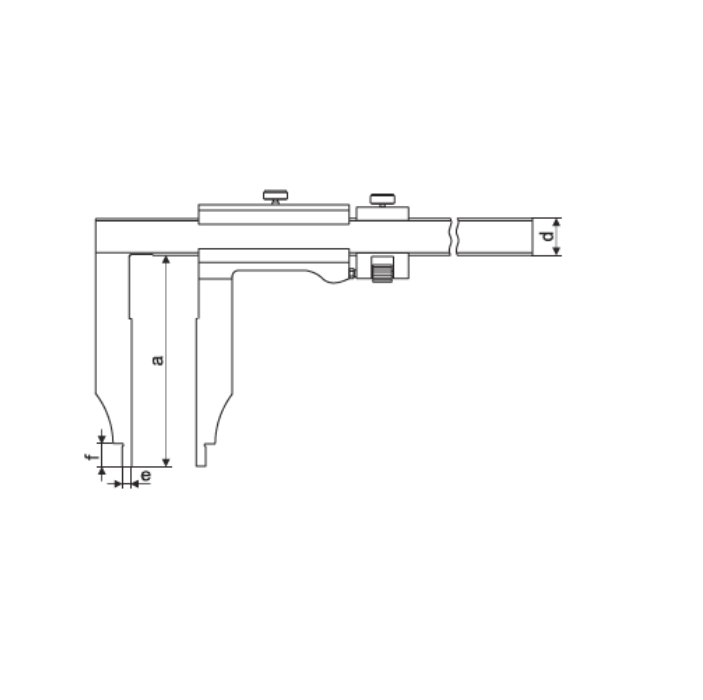

| KOD | ÖLÇÜ (mm) |
HASSASİYET (mm) |
TOLERANS (mm) |
a (mm) |
d (mm) |
e (mm) |
f (mm) |
| E9920 | 0-500 | 0,02 | ±0,05 | 100 | 25 | 5 | 13 |
| E9921 | 0-500 | 0,05 | ±0,05 | 100 | 25 | 5 | 13 |
| E9922 | 0-600 | 0,02 | ±0,05 | 100 | 25 | 5 | 13 |
| E9923 | 0-600 | 0,05 | ±0,05 | 100 | 25 | 5 | 13 |
| E9924 | 0-800 | 0,02 | ±0,05 | 150 | 32 | 10 | 17,5 |
| E9925 | 0-800 | 0,05 | ±0,05 | 150 | 32 | 10 | 17,5 |
| E9926 | 0-1000 | 0,02 | ±0,07 | 150 | 32 | 10 | 20 |
| E9927 | 0-1000 | 0,05 | ±0,07 | 150 | 32 | 10 | 20 |
|
||
|---|---|---|
