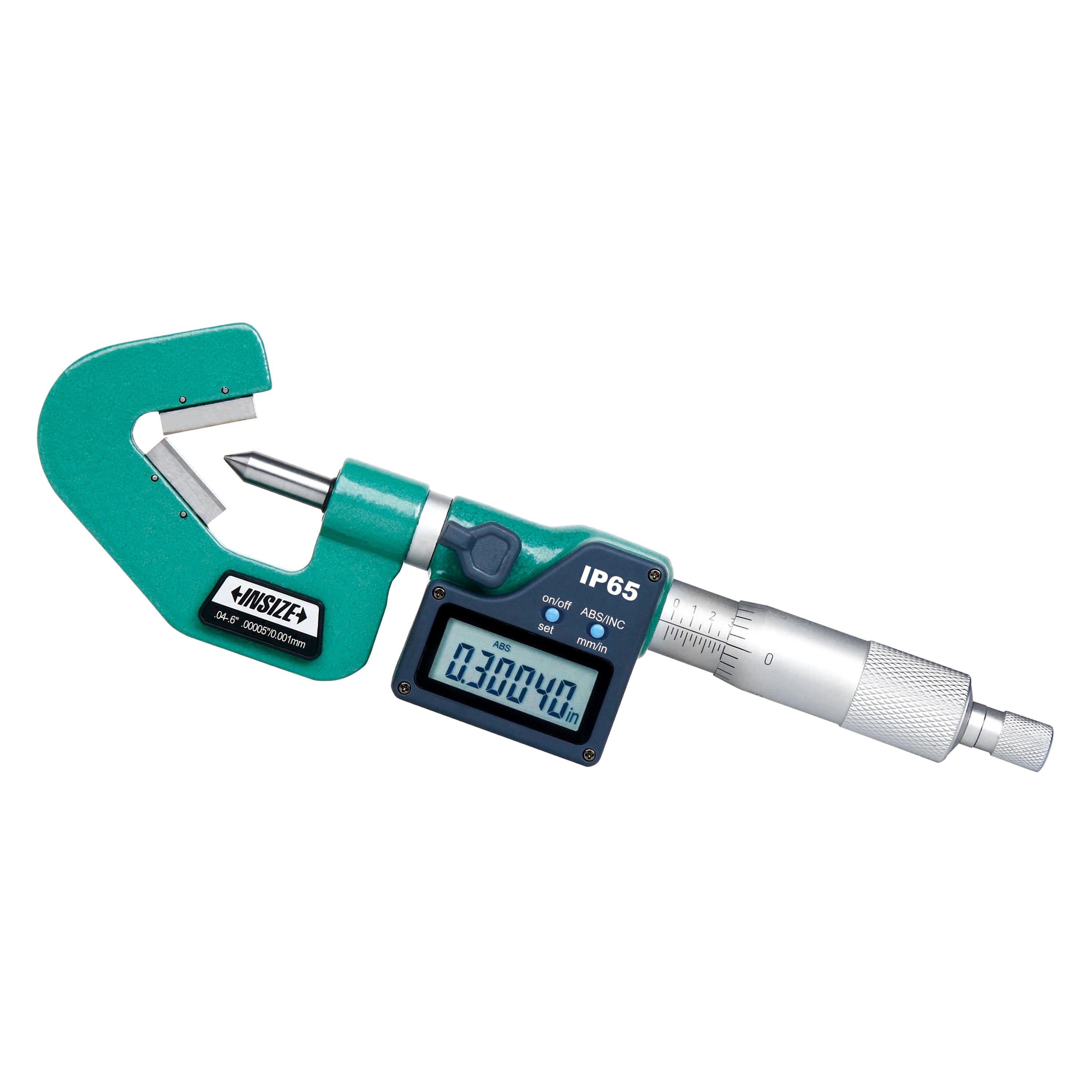

- Parçaların,rayba,freze kılavuz gibi oluklu kesici aletlerin çapları ölçülür.
- Hassasiyet 0,001mm/0,00005
- IP65 tozu / kapa,ayar ,mm/inç ,ABS/INC
- Bİlgi çıkış
- Otomatik kapanma
- Cırcırlı
- Karbürlü ölçüm yüzeyleri
- Sıfırlama mastarları ile tedarik edillir.
- Opsiyonel aksesuar : bilgi çıkış kablosu
(kod 7315-30, 7302-30)
| KOD |
Ölçüm Aralığı |
Ağızlı |
Doğruluk |
a |
| 3590-153A |
1-15mm/0,04-0,6" |
3 |
±4µm |
60° |
| 3590-203A |
5-20mm/0,2-0,8" |
3 |
±4µm |
60° |
| 3590-353A |
20-35mm/0,8-1,4" |
3 |
±5µm |
60° |
| 3590-503A |
35-50mm/1,4-2,0" |
3 |
±5µm |
60° |
| 3590-653A |
50-65mm/2,0-2,6" |
3 |
±6µm |
60° |
| 3590-803A |
65-80mm/2,6-3,2" |
3 |
±6µm |
60° |
| 3590-953A |
80-95mm/3,2-3,6" |
3 |
±6µm |
60° |
| 3590-255A |
5-25mm/0,2-1,0" |
5 |
±4µm |
108° |
| 3590-455A |
25-45mm /1,0-1,8" |
5 |
±5µm |
108° |
| 3590-655A |
45-65mm /1,8-2,6" |
5 |
±6µm |
108° |
| 3590-855A |
65-85mm /2,6-3,4" |
5 |
±6µm |
108° |
| 3590-1055A |
85-105mm /3,4-4,2" |
5 |
±6µm |
108° |
| 3590-257A |
5-25mm/0,2-1,0" |
7 |
±4µm |
128°34'17" |
| 3590-457A |
25-45mm /1,0-1,8" |
7 |
±4µm |
128°34'17" |
| 3590-657A |
45-65mm /1,8-2,6" |
7 |
±5µm |
128°34'17" |
| 3590-857A |
65-85mm /2,6-3,4" |
7 |
±5µm |
128°34'17" |
|
