- Hassasiyet: metrik 0,01mm imperial 0,0001"
- Karbür ölçüm ağızları
- DIN863-1 standardına uygundur
- Sıfırlama mastarları ile tedarik edilir (0-25mm ve 0-1" hariç)

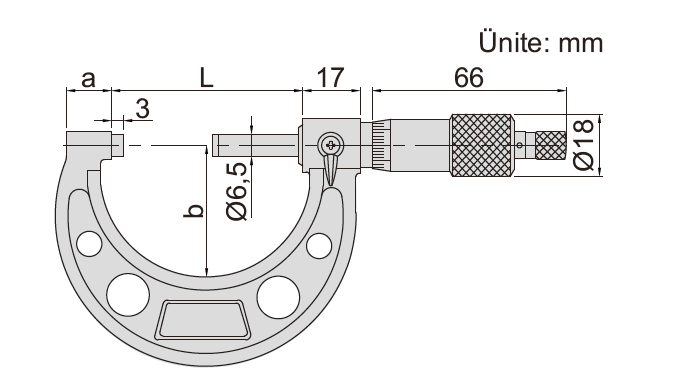

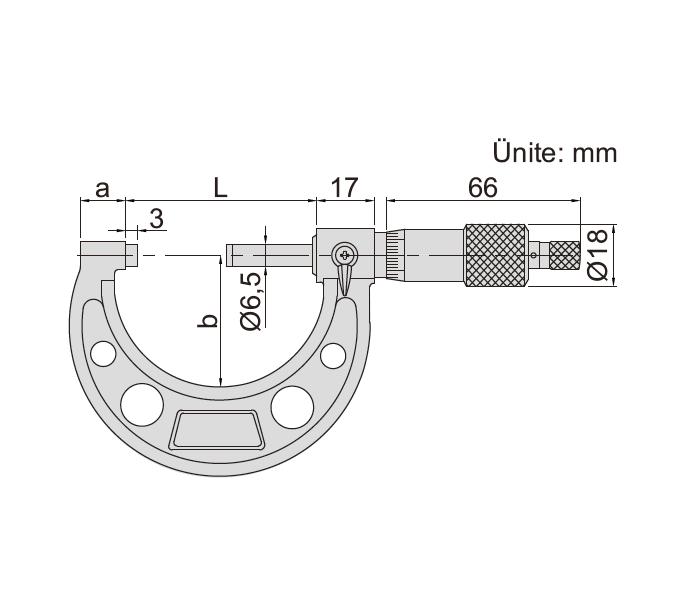

| Kod |
Ölçüm aralığı |
Doğruluk |
L |
a |
b |
| 3203-25A* |
0-25mm |
±2μm |
32 |
9 |
28 |
| 3203-50A* |
25-50mm |
±2μm |
57 |
14 |
38 |
| 3203-75A* |
50-75mm |
±2μm |
82 |
15 |
49 |
| 3203-100A* |
75-100mm |
±3μm |
107 |
15 |
60 |
| 3203-125A |
100-125mm |
±3μm |
133 |
16,5 |
73 |
| 3203-150A |
125-150mm |
±3μm |
158 |
16,5 |
85 |
| 3203-175A |
150-175mm |
±4μm |
183 |
19,4 |
104 |
| 3203-200A |
175-200mm |
±4μm |
209 |
19,4 |
117 |
| 3203-225A |
200-225mm |
±4μm |
234 |
19,4 |
130 |
| 3203-250A |
225-250mm |
±5μm |
260 |
19,4 |
142 |
| 3203-275A |
250-275mm |
±5μm |
285 |
19,4 |
155 |
| 3203-300A |
275-300mm |
±5μm |
310 |
19,4 |
168 |
|
